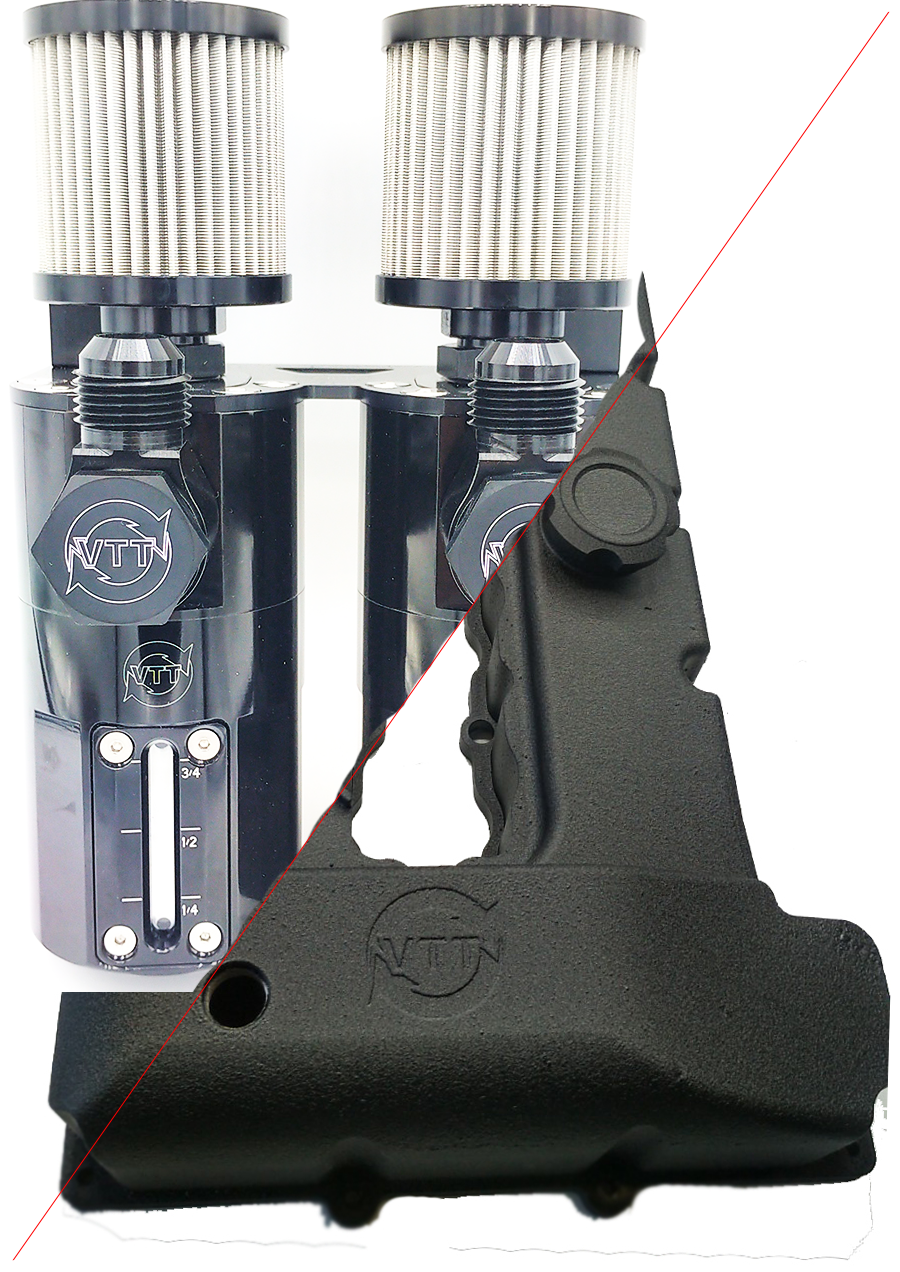

VTT N54 Valve Cover & Catch Can Kit - All You Need Kit

VTT N54 Valve Cover & Catch Can Kit - All You Need Kit

Regular price $1,154.00 USD
Regular price Sale price $1,154.00 USD
Sale Sold out
Shipping calculated at checkout.

One of the most common\questions we get is regarding VC set up with catch cans, and which fittings to pick, how to set it up, etc. This kit does away with all of that, and we give you exactly what you need to g to external PCV on the N54.

All we need from you is some basic info.

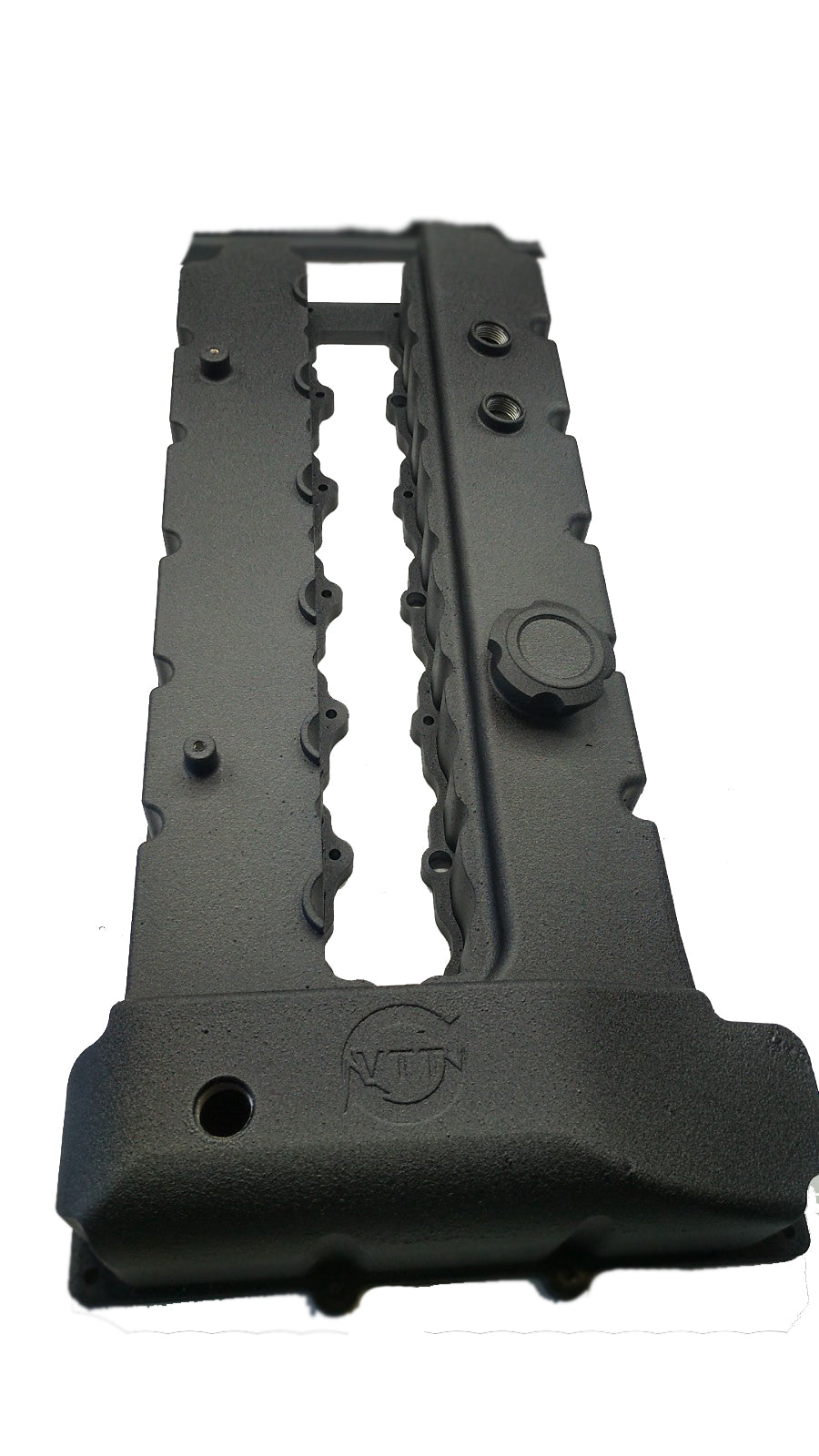

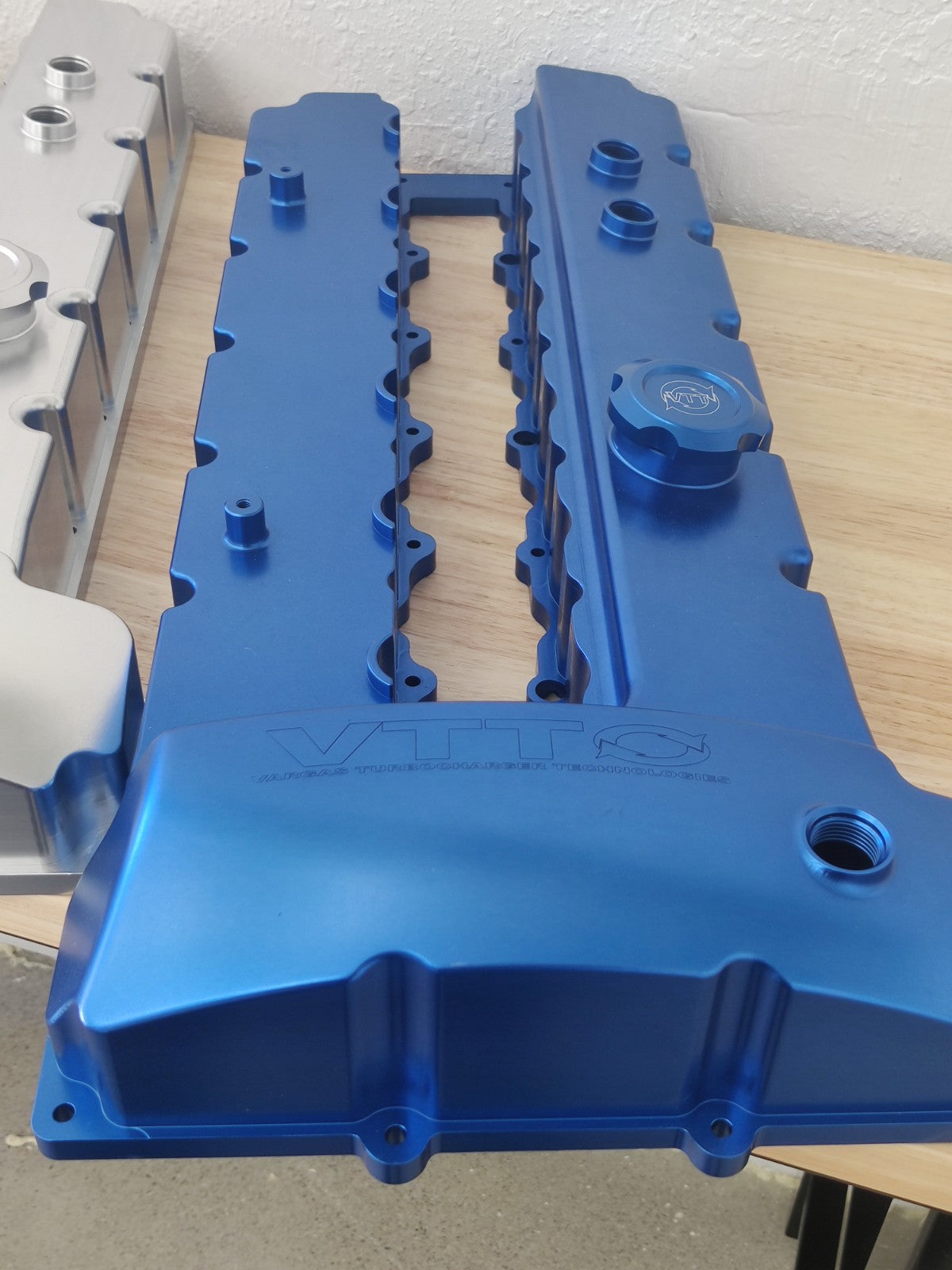

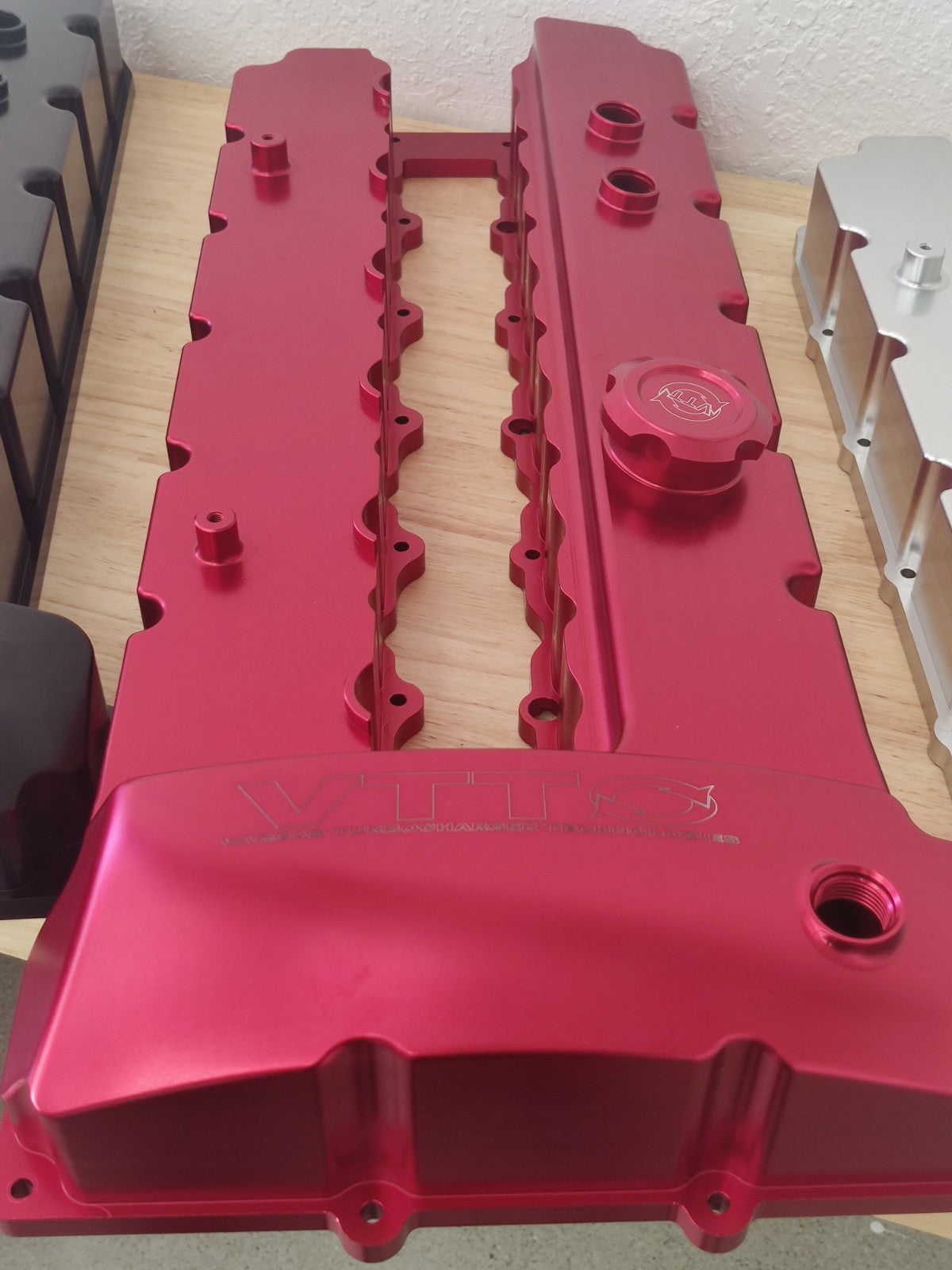

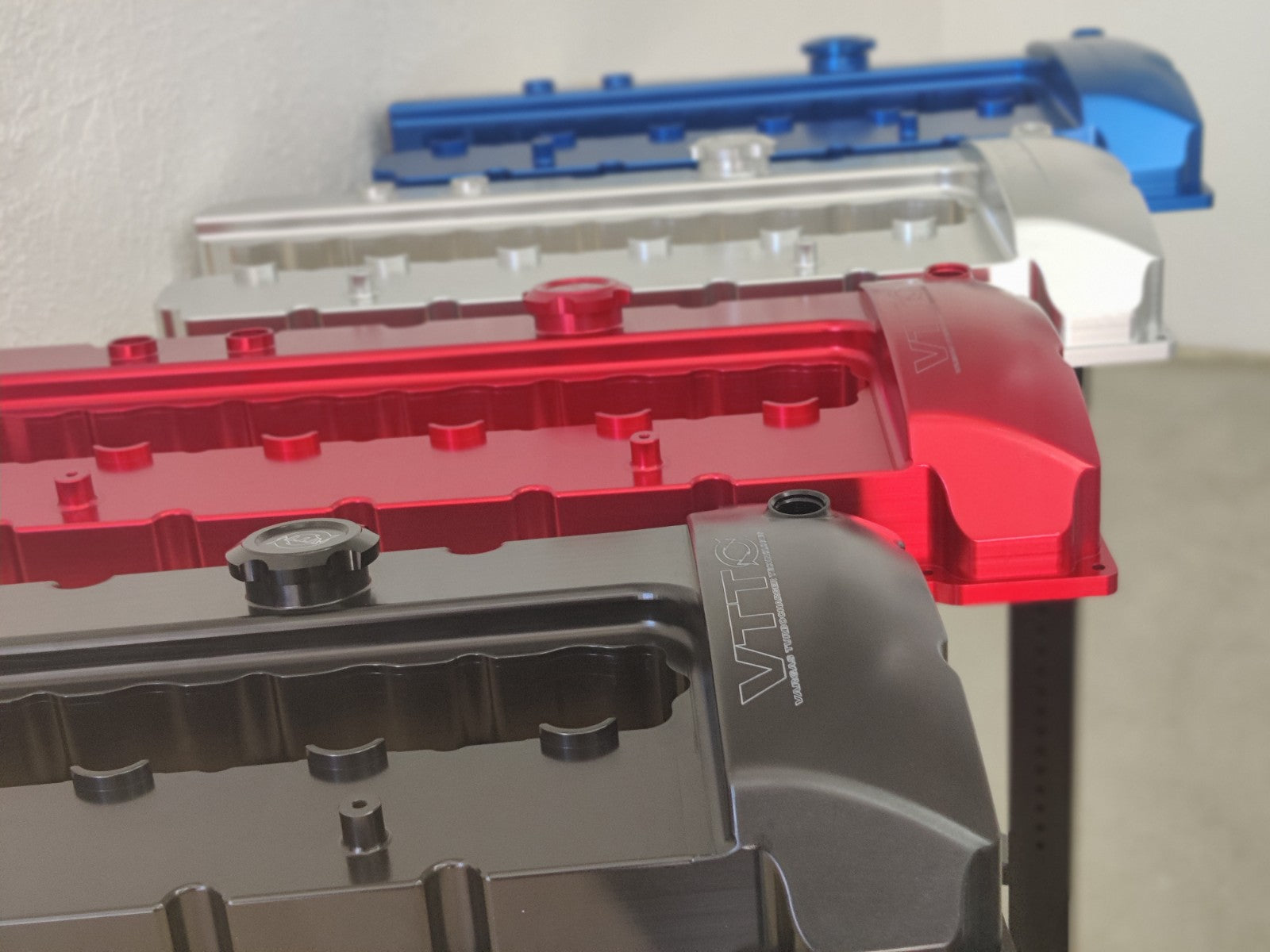

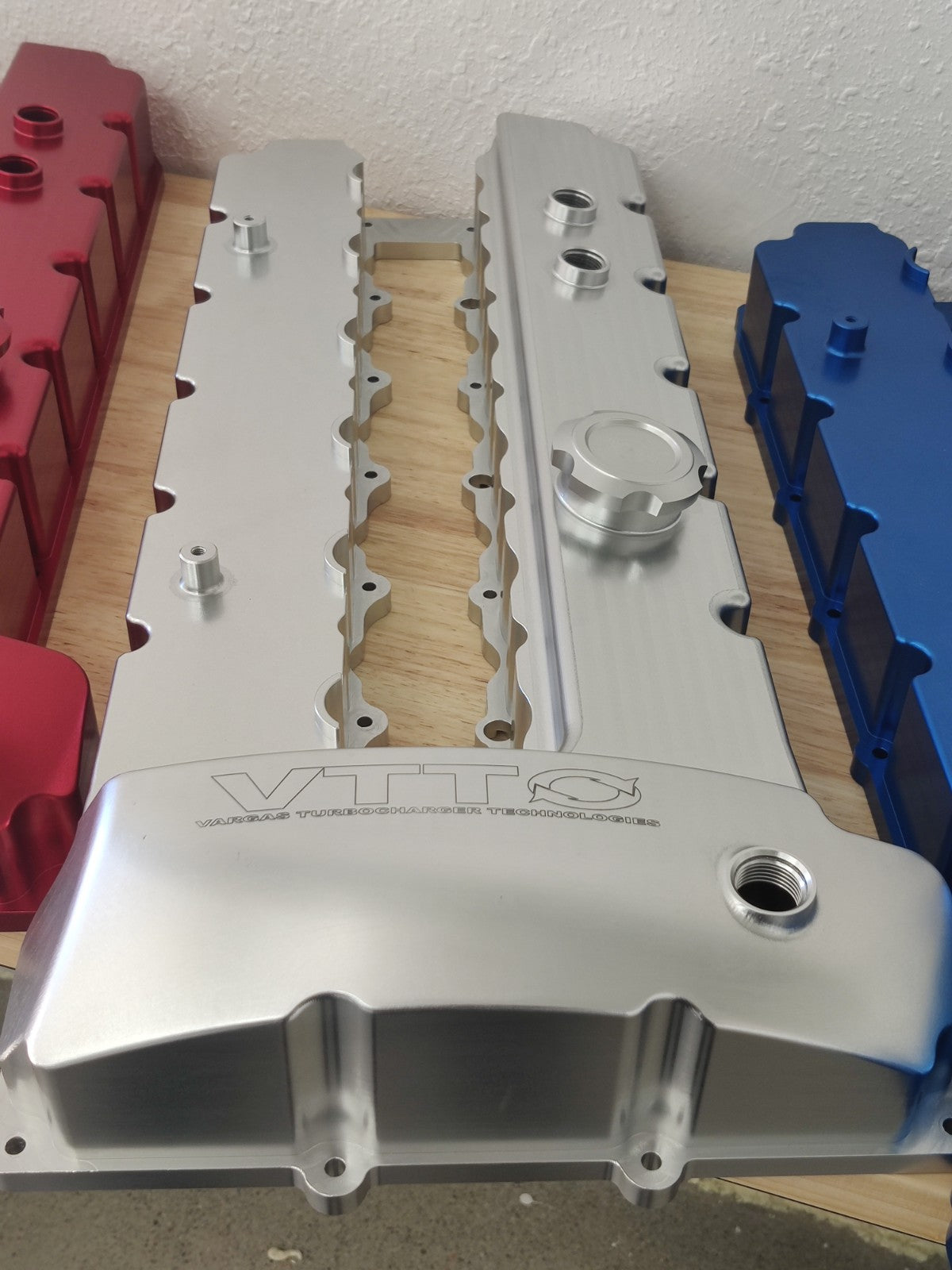

Valve cover Choice: Cast or Carbon FIber

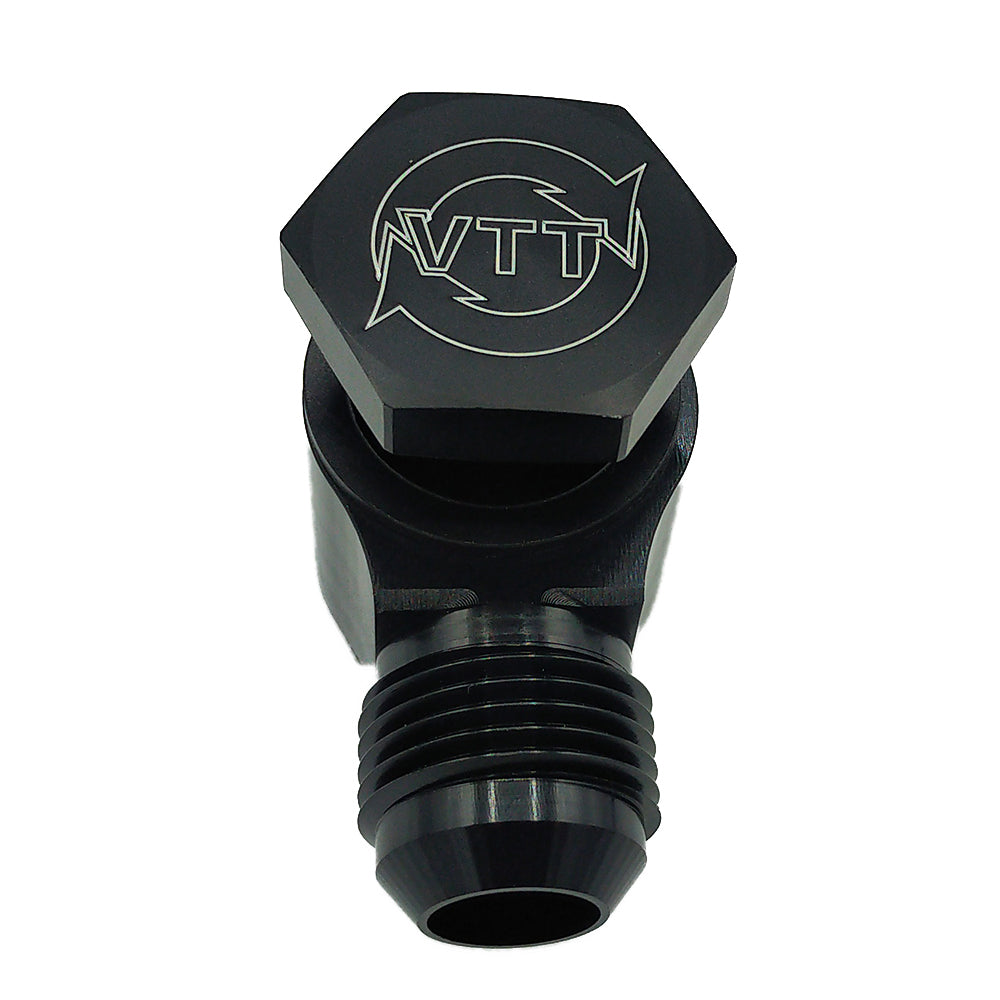

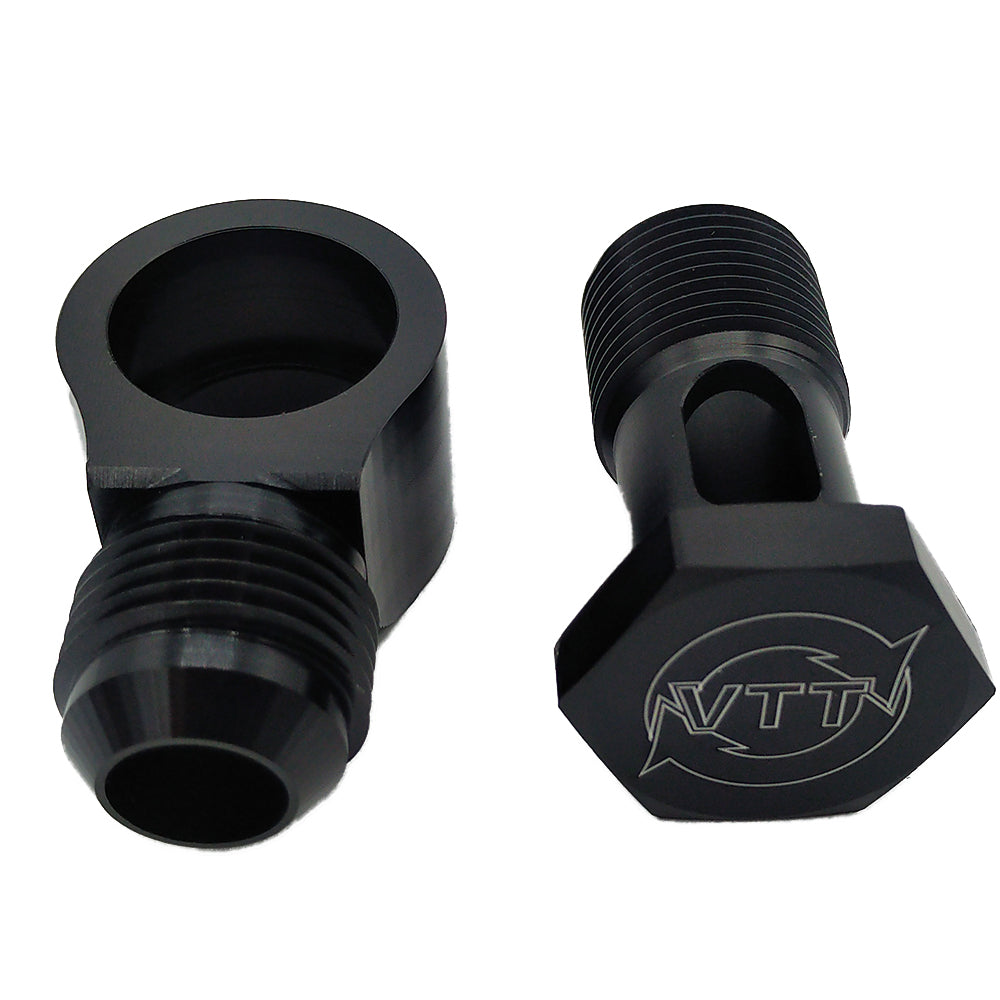

Fittings style: Basic style steel fittings (cost-effective, look good), VTT Low Profile banjo fittings (very clean look, more expensive)

Add the coil hold down bracket to keep positive pressure on your coils to hold them in place. Comes with one long bracket, and 6 hold-down brackets, and 6 Socket cap Screws. (We will send matching color to your VC)

Kit contains the following

With Banjo Fittings:

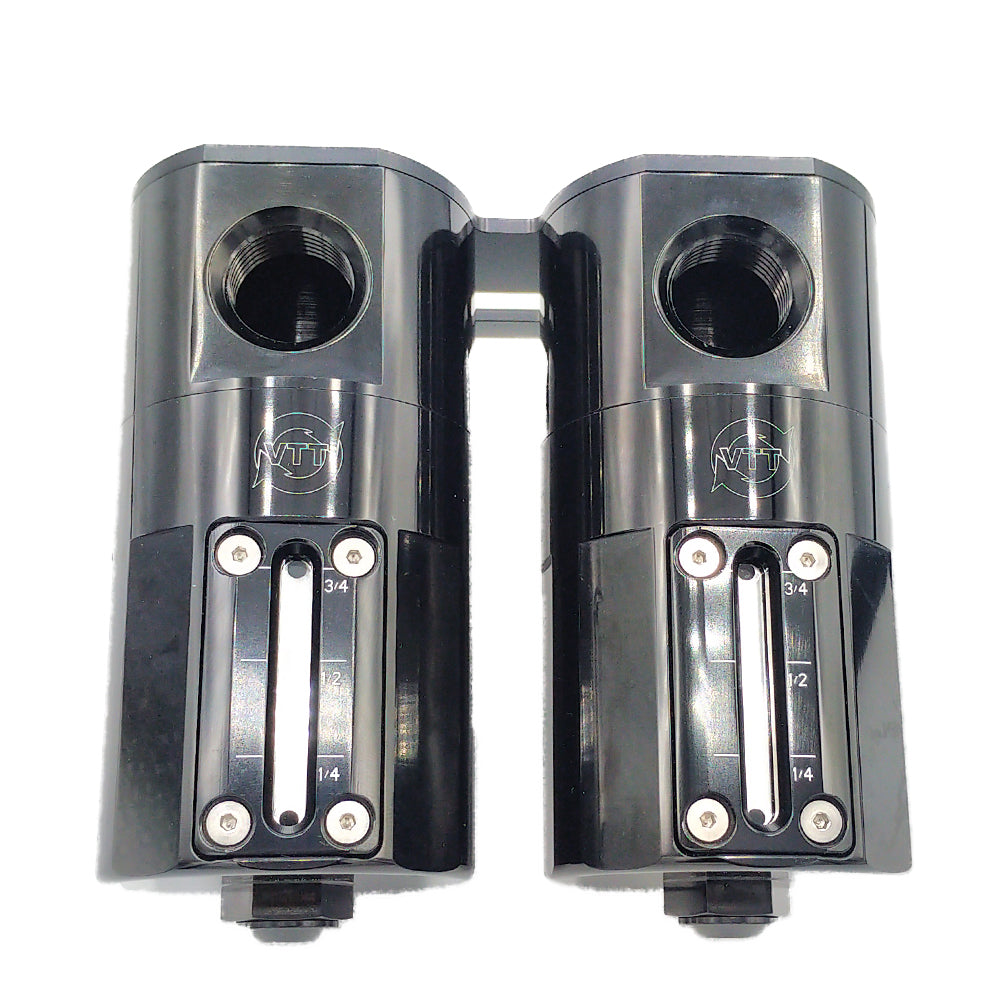

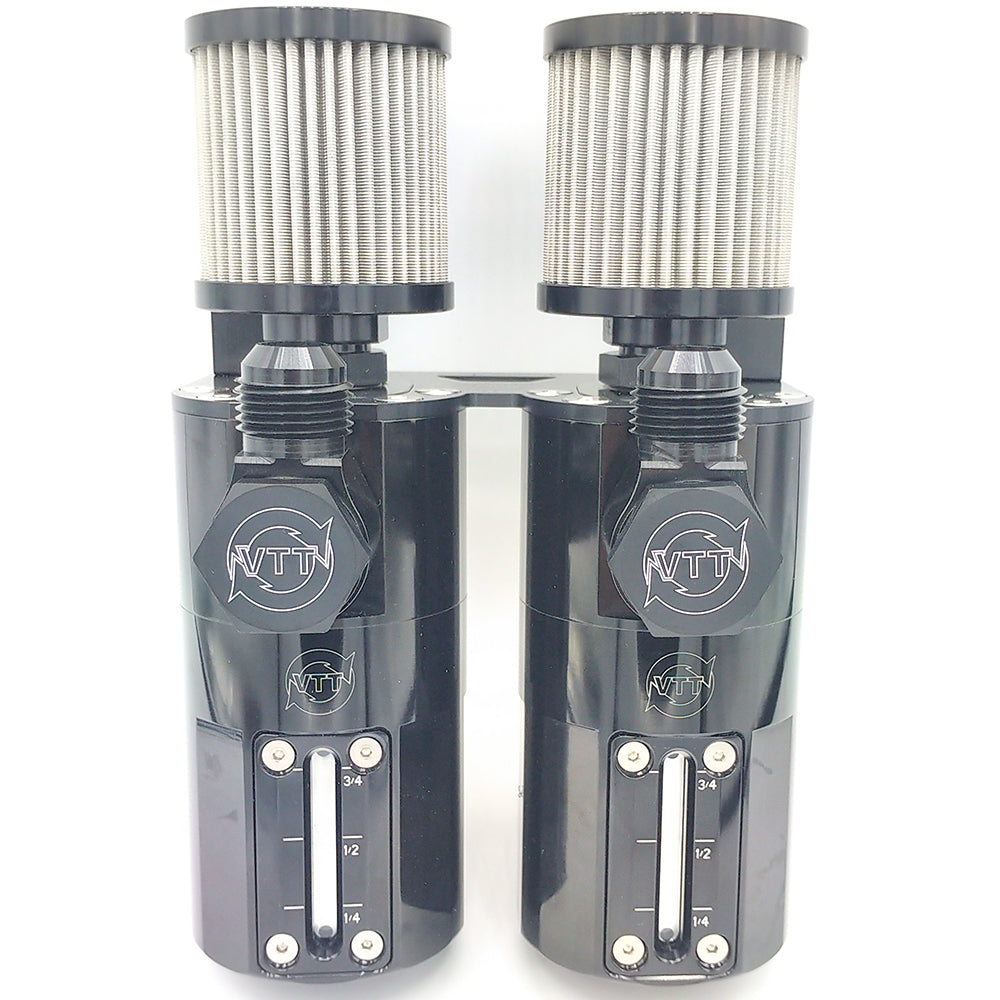

  • 2 Catch cans
  • 1 VC of choice
  • 1 N54 dual bracket
  • 1 VTA breather
  • 1 External PCV adapter
  • 1 External hose with check valve
  • 1 -8 AN banjo
  • 2 -8 Barbed Banjos
  • 2 -10 Barbed Banjos
  • Head port block off kit
  • 1 -10 AN plug
  • 18” -10 hose
  • 5” -8 Hose

With Ste with Steel fittings:

  • 2 Catch cans
  • 1 VC Of choice
  • 1 N54 dual bracket
  • 1 VTA breather
  • 1 External PCV adapter
  • 1 External hose with check valve
  • 3 -8 90-degree steel fittings
  • 2 -10 90-degree steel fittings
  • 2 -8 hose ends
  • 2 -10 hose ends
  • Head port block off kit
  • 1 -10 AN plug
  • 18” -10 hose
  • 5” -8 Hose

Disclaimers:

PLEASE NOTE: THE STAINLESS BREATHER OR VACUUM RELIEF WILL NOT FIT ON THE FRONT ORB AS IT WILL NOT CLEAR THE HOOD.

Please note: This cover may or may not fit with your engine cover depending on how you have it set up, and is designed to be run without an engine cover. This fits the BMW N54 engine ONLY.

ALSO NOTE: Tightening specs on these are as follows:

HAND TIGHT, LET WARM UP, RETIGHTEN TO HAND TIGHT. ANY MORE AND YOU CAN CRACK THE VALVE COVER AS IT IS SITTING ON THE GASKET

All cast valve covers contain porosity, which is inherent to the casting process.  Assuming the weep is minor and there is no visible crack or defect in the VC itself, VTT recommends the use of Permatex spray sealant on the inside of the VC to minimize the likelihood of weeping.

WHEN GOING TO AN ALUMINUM VC YOU ARE REMOVING THE FACTORY PCV SYSTEM, AD ITS FUNCTION. IF YOU DO NOT REPLACE WITH AN EXTERNAL PCV SET UP THERE IS A VERY GOOD CHANCE YOUR N54 WILL SMOKE. WE HIGHLY RECOMMEND GOING EXTERNAL AT A MINIMUM ON THE LOW SIDE TO PROVIDE VACUUM TO THE CRANKCASE AT IDLE TO HELP WITH TURBO DRAINING, ETC. WE ALSO SUGGEST BLOCKING THE HEAD PORTS WHEN GOING TO AN ALUMINUM COVER, THIS STOPS THE GASKET FROM HAVING TO DO ALL THE WORK OF KEEPING BOOST OUT OF THE CRANKCASE. THESE VC’S ARE DESIGNED TO WORK WITH OUR MODULAR CATCH CAN KITS, AND HEAD PORT BLOCK OFF KITS. IF YOU ARE NOT SURE WHAT TO ORDER EMAIL US, WE WOULD BE HAPPY TO HELP

PLEASE NOTE: THESE CATCH CANS DO NOT FIT WITH THE STANDARD COWL IN PLACE WITHOUT MODIFYING THE COWL. THESE ARE FOR VEHICLES THAT RUN WITH THE COWL REMOVED, AND COWL FILTERS SUCH AS BMS.

ALSO NOTE: THE STAINLESS BREATHER WILL NOT FIT ON THE LEFT CAN WHEN USING THE FAB FACTORY MANIFOLD.  IF YOU PLAN ON REMOVING THE STOCK PCV VALVE TO RUN OUR EXTERNAL KIT OUR PCV DELETE FITTING WILL BLOCK THE PASSAGE FROM THE HEAD PORTS. WE SUGGEST YOU BLOCK YOUR HEAD PORTS IF YOU PLAN TO RUN 25+PSI OF BOOST, KIT IS AVAILABLE IN THE DROP DOWNS

If you have any specific requests or info you want to pass on to us, please email us at support@vehiclevirals.com
