Fuel-It! E Chassis Stage 3 LPFP Upgrade

Fuel-It! E Chassis Stage 3 LPFP Upgrade

Regular price $1,100.00 USD
Regular price Sale price $1,100.00 USD
Sale Sold out
Shipping calculated at checkout.

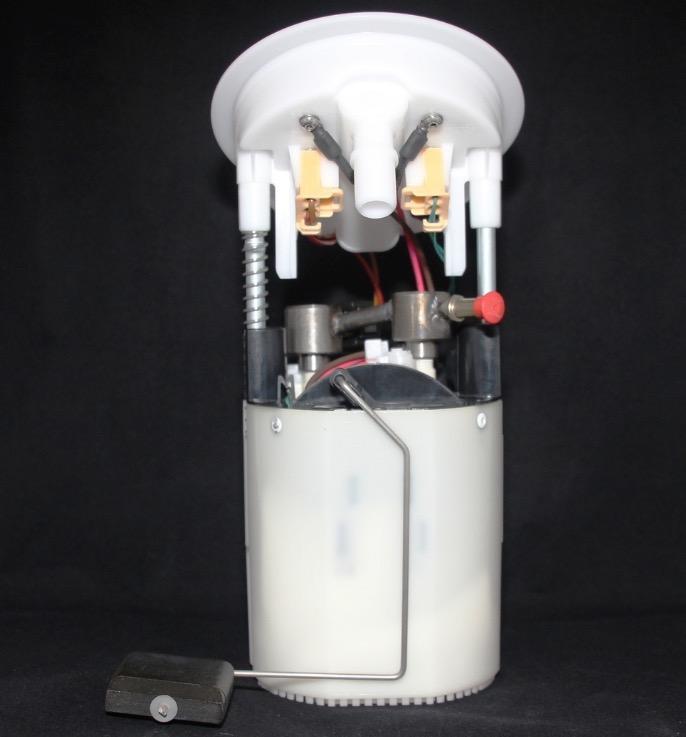

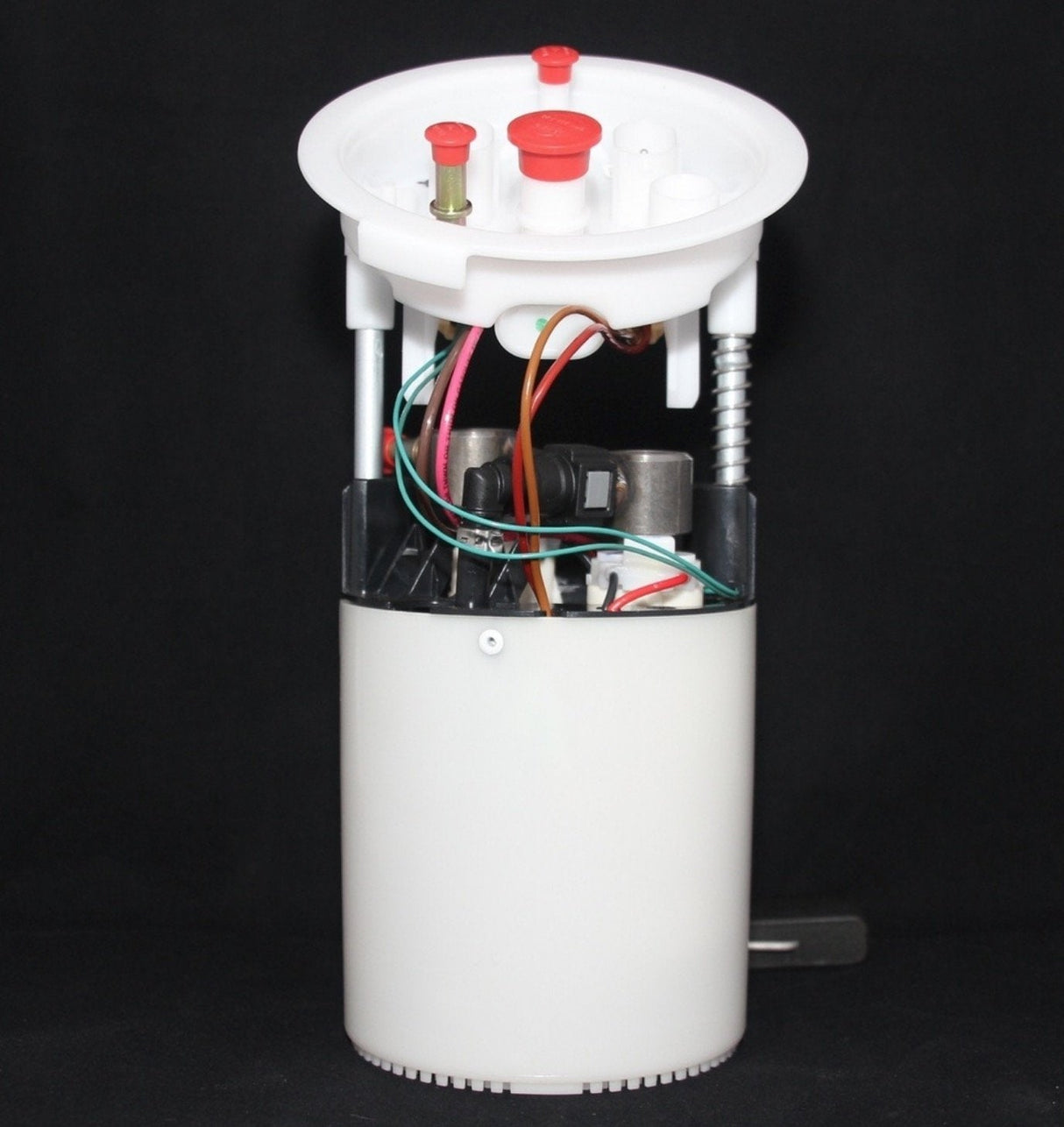

This is a complete Low Pressure Fuel Pump (LPFP) upgrade that replaces your stock LPFP assembly with a new E85 certified one.  This solution provides up to 330% more flow than stock and this assembly can be purchased one of two ways to meet your needs.
  • New Build:
    • This option includes a new LPFP bucket that is upgraded with two new Walbro 450 pumps, filters, and fittings.  No core deposit is required.
      • Optional to upgrade to Walbro 525 pumps
  •  Rebuild:
    • If you'd prefer to send your *stock bucket in to be rebuilt/upgraded and avoid the core deposit, this is the option for you.  If you choose this option, your order will ship within 5 business days of receiving your *stock bucket.
  • Both options include the following:
    • A complete plug and play solution by simply replacing your stock bucket.  However, to utilize the secondary, an additional wiring harness must be installed.
    • Two new Walbro filters
    • A custom fitting that is tuned to optimize the venturi and pump output
    • Spare vent tube clip
    • Wiring harness for the secondary
    • Two new E85 compatible Walbro 450 pumps (F90000274)
    • Optional to upgrade to Walbro 525 pumps
  • Recommended Accessories:
    • Lock Ring Removal Tool
    • Return line fitting
      • This option is for those customers that will be running an external fuel pressure regulator (FPR).  You will need this to install your return line from the FPR to the tank.

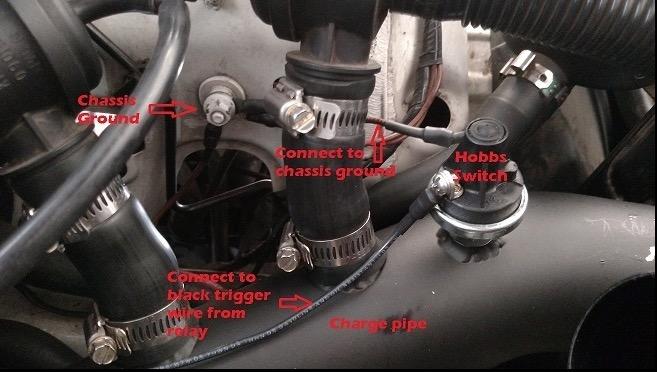

    • Hobb's Switch
      • This option is for those customers that will be using a boost referenced switch to trigger the secondary on their Stage 3 pump.
  •  Compatible with the following vehicles production dates:
    • 1' E88         (11/2006 — 10/2013)
    • 1' E82          (11/2006 — 10/2013)
    • 3' E90         (02/2004 — 09/2008)
    • 3' E90 LCI   (07/2007 — 12/2011)
    • 3' E91         (02/2004 — 08/2008)
    • 3' E91 LCI   (07/2007 — 05/2012)
    • 3' E92         (05/2005 — 02/2010)
    • 3' E92 LCI   (11/2008 — 06/2013)
    • 3' E93         (09/2005 — 02/2010)
    • 3' E93 LCI   (11/2008 — 10/2013)
    • X1 E84         (04/2009 — 06/2015)


*To be eligible for rebuild and upgrade, the bucket must be completely stock and undamaged. (Pump itself does not have to be functioning)

-Due to the different configurations available for Stage 3, these kits will be built after the order is placed and will ship within 5 business days.

- All Stage 3 assemblies are stock buckets that have been rebuilt and may show signs of being disassembled and rebuilt.  They are all flow tested and verified before being shipped.

  • Upgraded pumps pull more current, so if your EKP (LPFP control module) is weak, it may overheat causing it to shut down and need to be replaced.
