Eventuri BMW F90 M5 Black Carbon Intake System-V2

Eventuri's BMW F90 M5 and F9X M8 intake system was developed using real-world testing and airflow simulation. It features sealed filter housings to maintain consistent IATs even while idle and air scoops that deliver ambient air directly into the intake area to limit heat-soak. Additionally, gold heat-reflective shields have incorporated flow guides that move the ambient air from the scoops into the filters. With an inlet tube cross-sectional area increased by over 30% vs. stock intake, turbos can run more efficiently and waste-gate duty cycles are reduced.

The Eventuri Difference

The F90 M5 / F9X M8 Eventuri system uses our Patented Carbon Fibre Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.

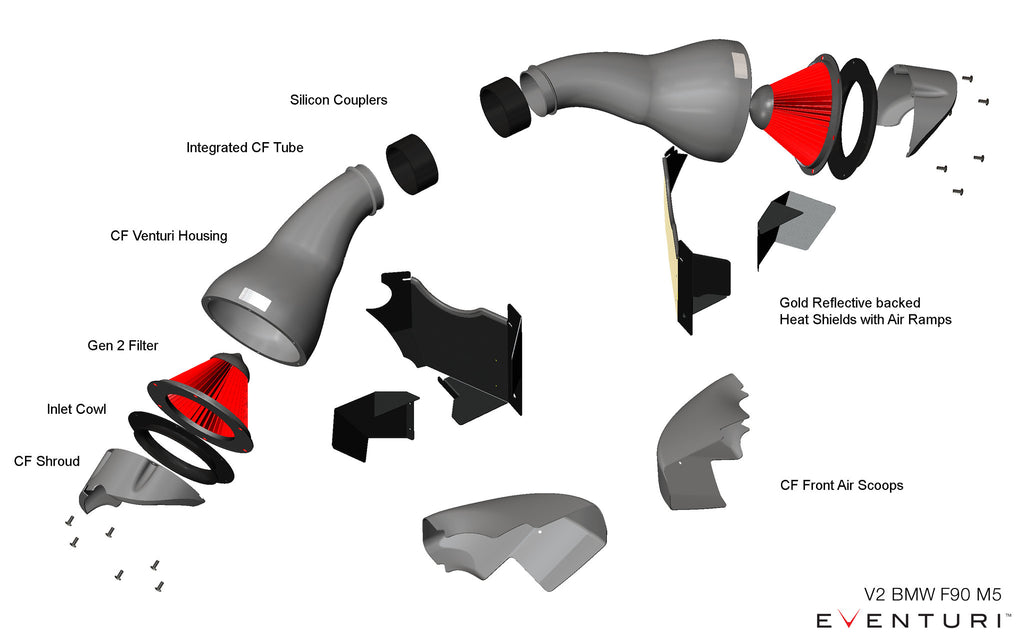

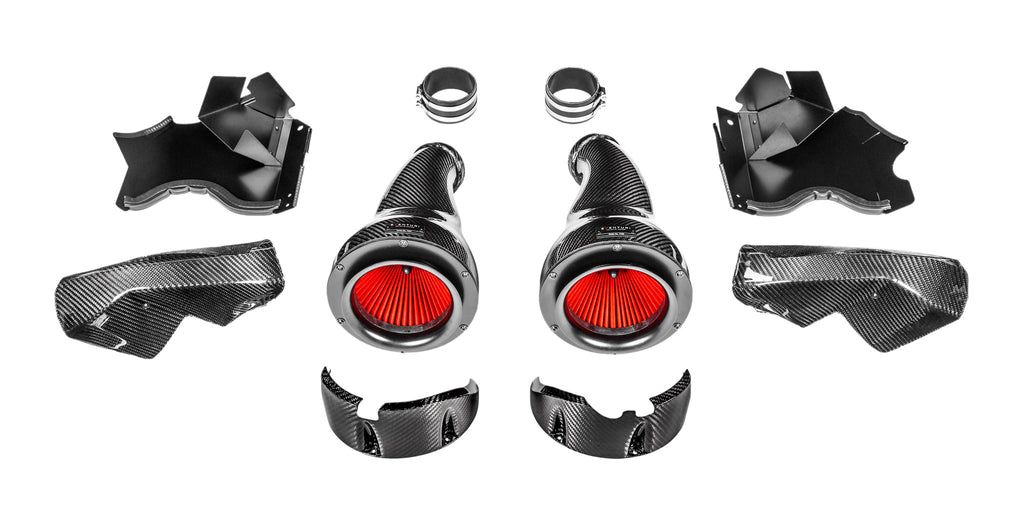

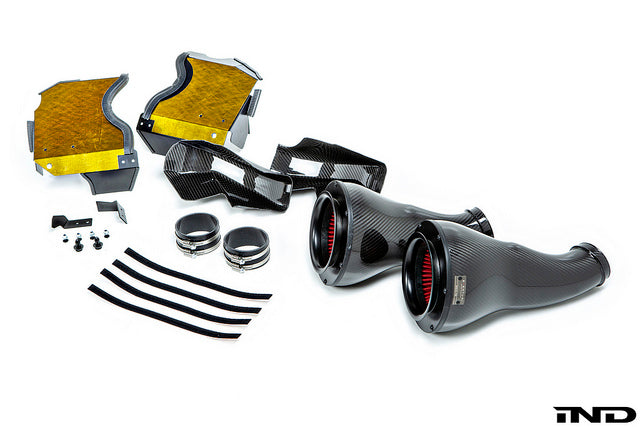

Each intake system consists of:

• 2 x Carbon Fiber Venturi Housings with Integrated Tubes
• 2 x Bespoke High Flow Generation 2 Filters
• 2 x Carbon Fiber Filter Shrouds
• 2 x Aluminum Inlet Cowls

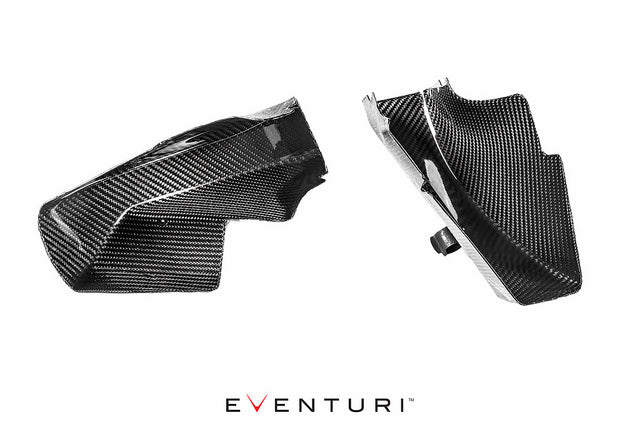

• 2 x Carbon Fiber Air Scoops
• 2 x Laser Cut Heat Shields lined with Gold Heat Reflective Material
• 2 x Laser Cut Air Ramps integrated into the Heat Shields
• High Quality Silicon Couplers and OEM Spec Hose Clamps
• Acceleration Time : 60-130mph Reduced By 0.22 seconds
  Max Flow Rate Per Airbox at 28″ H2O: Stock 620 CFM, Eventuri 736 CFM

** This item is not eligible for return **
