DOCRace A90 A91 6 Port Toyota Supra B58 Top Mount Turbo Kit

Due to high demand we are looking at 4-8 weeks to ship your kit once it is placed.

Now available in 2 different runner sizes.

1.25 schedule 40 is a runner size that is standard in the industry and has been known to produce well over 1200hp.  Note that our 1.25 manifold has a high flow investment cast collector as part of the manifold.

1.5 schedule 40 is a much larger runner size that will produce less exhaust back pressure for guys really looking to squeeze every inch out of their setup.  Contrary to popular belief using 1.5 runners does not produce more lag than 1.25.

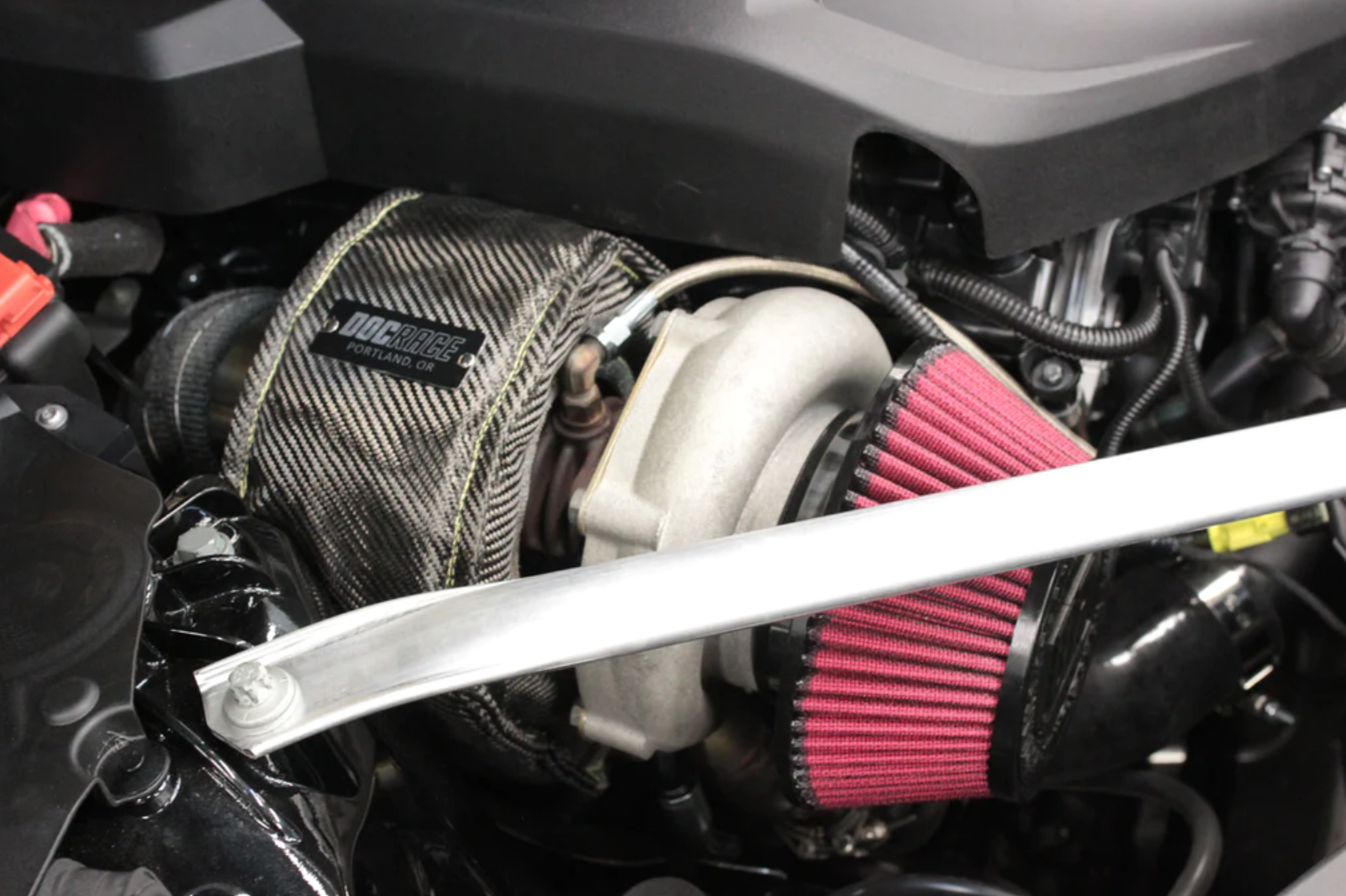

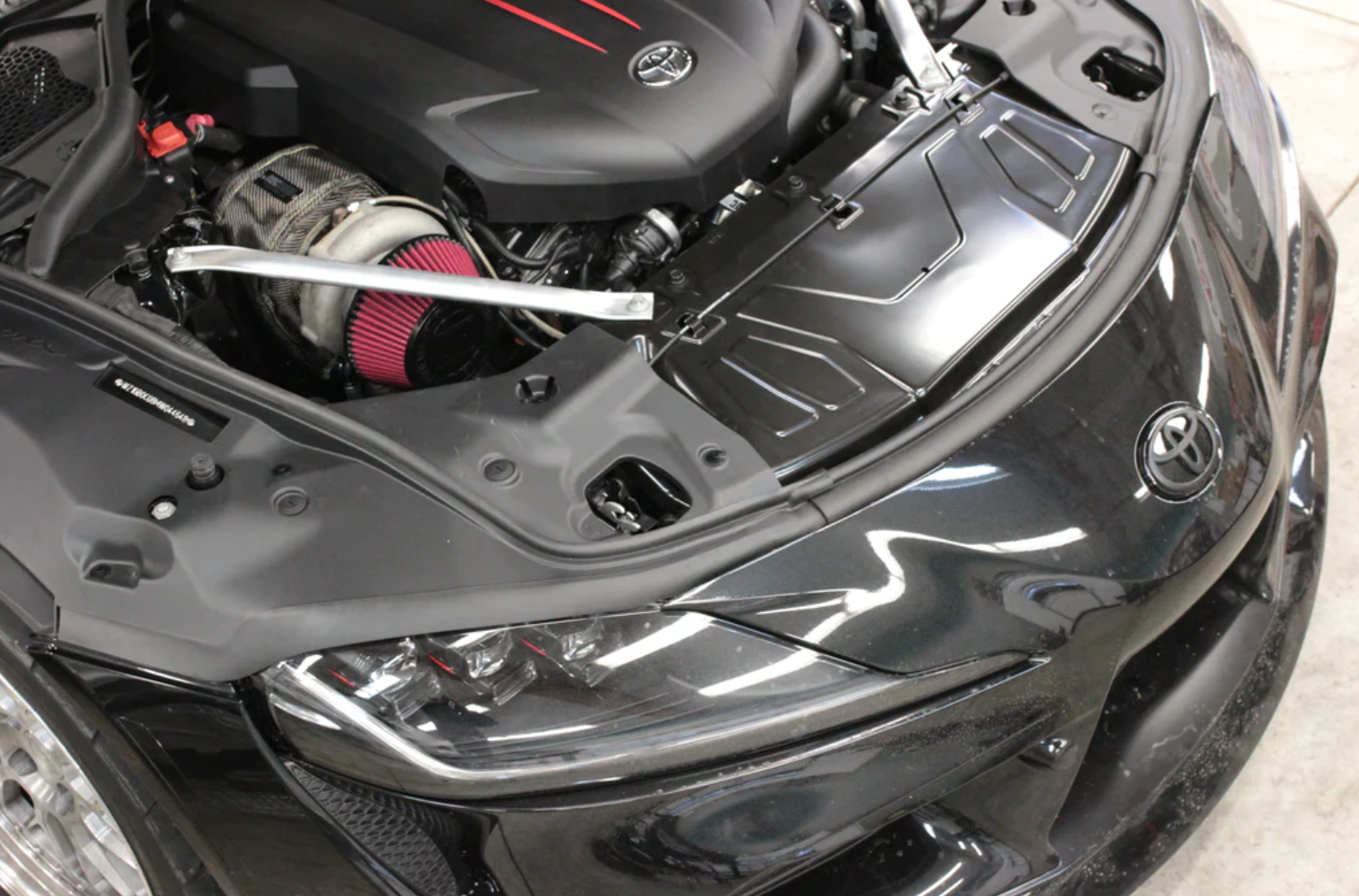

** Turbo will be mounted close to your valve cover and strut tower as seen in pictures.  We will supply you with a proper heat shield and turbo blanket to protect from radiant heat.

** It is highly recommended to run an oil catch can kit if you are running more than 20psi.

DOC Race is offering a true bolt on turbo kit which will be available to purchase for your 2021+ 6 port Supra.  We are using PTE turbos which have been proven in the industry to be one of the best performing and most reliable turbos.

 Turbo kit includes:

• PTE Turbo T4 twin scroll 1.0 A/R
• Cast T4 twin scroll exhaust manifold
• Dual Turbosmart  GenV 40mm wastegates

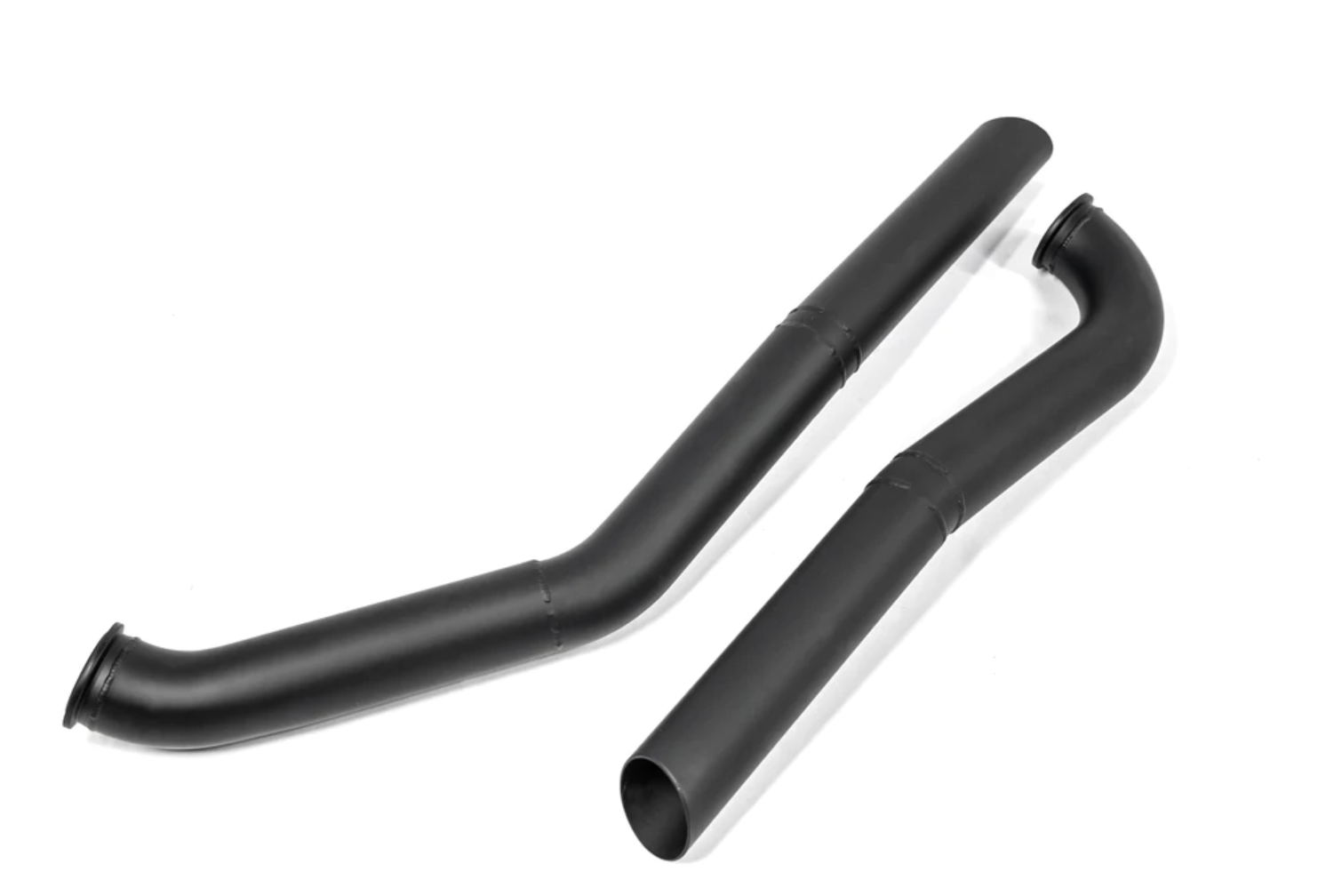

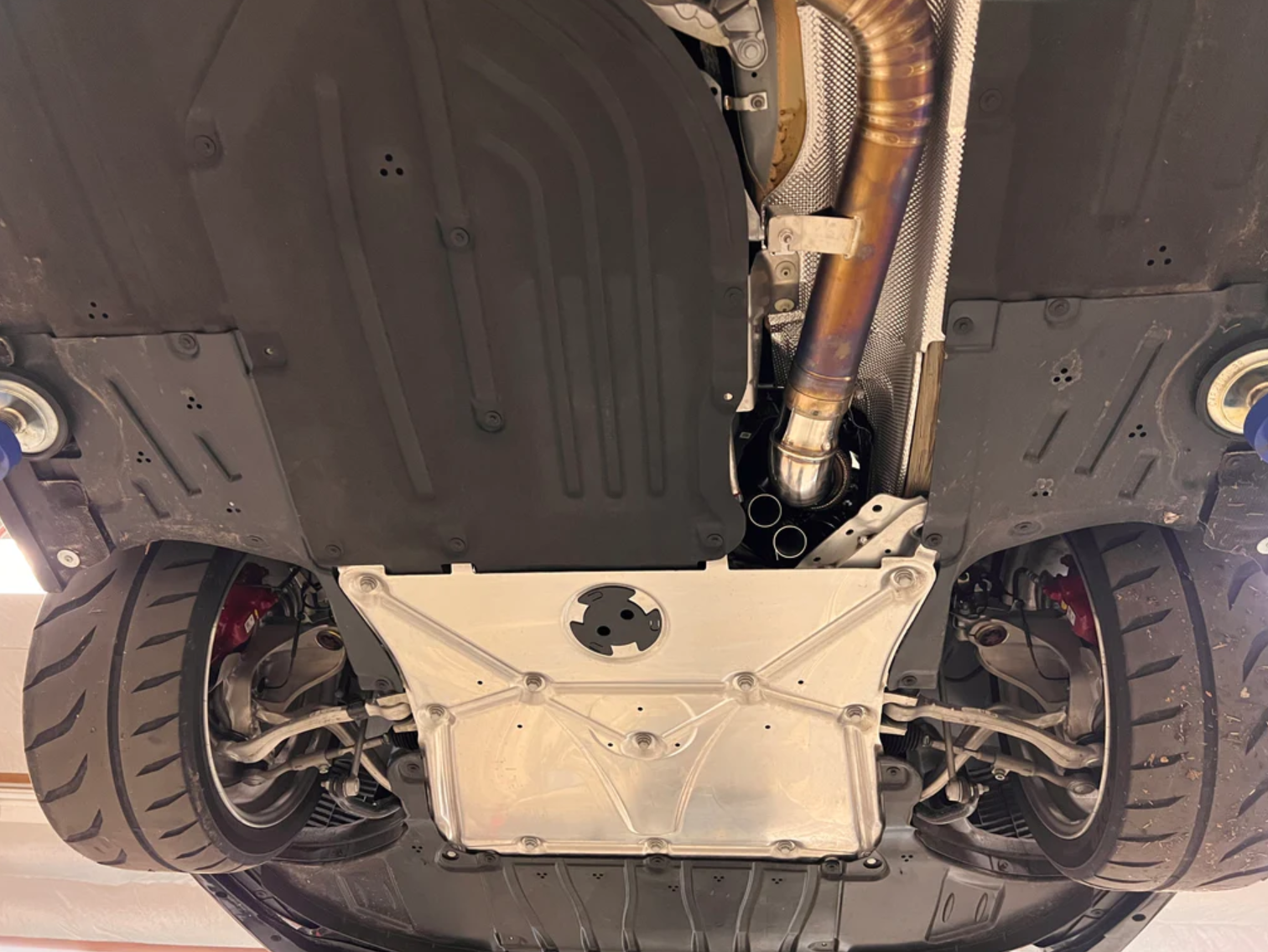

• 3.5” stainless downpipe to connect to oem exhaust
• Dual 1.75” stainless wastegate dump tubes
• Braided stainless -6an coolant bypass line
• Braided stainless -10an oil drain line
• Braided stainless -4an  oil feed line
• DOC Race carbon turbo blanket
• Exhaust wrap for downpipe
• All required fittings, lines and filter for PCV system
• All required charge pipes, couplers and clamps
• 4” air filter
• All gaskets and hardware required for full install


PLEASE MESSAGE US WITH ANY QUESTIONS REGARDING TURBO SIZE AND SETUPS
