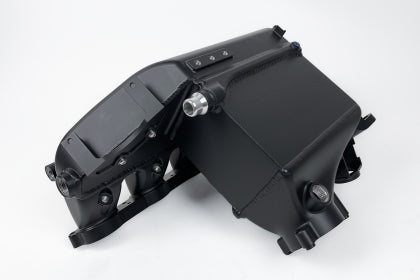

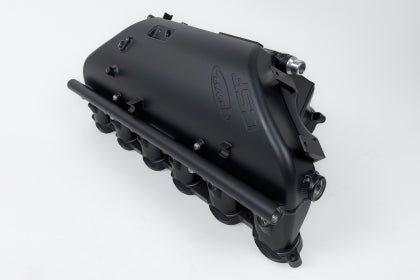

CSF Charge Air Cooler Manifold for BMW G8X M2/M3/M4 S58
$6,599.00
Unit price
/
Unavailable
- Faster recovery of Intake Air Temperatures (IATs)
- ~30°F reduction of Intake Air Temperatures (IATs) compared to OEM
- Less pressure drop compared to OEM core
- Puts less stress on the turbo system and allows more boost to be made at higher target power levels
- Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core.
- High performance bar/plate intercooler core by PWR pressure tested to 120psi
- OEM cooler is a tube/fin core which is prone to failing at pressures over ~27psi
- Top feed port injection w/ included fuel rail (w/ CNC machined block-off caps included for non-use)
- Integrated Nitrous/Methanol Injection Ports
- Individual ports for each runner for maximum control
- Integrated vacuum and parameter pad to measure additional parameters
- Easy access to spin-off oil filter
- Integrated breather port for easy bleeding of air from the water side of the manifold
- Included KIYLEX Thermal Rejection Manifold Spacer
- Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- All necessary brackets, hardware, and instructions to install
- Raw Billet Aluminum Finish (#8233)
- Thermal Black Heat Dispersion Powder-Coating Finish (#8233B)
- Available in custom colors from the leader in BMW cooling customization (#8233C)
- True Plug-and-Play “Drop-in Fit” Installation – Requires Absolutely No Modifications.
- OEM level of fit and finish
- Limited Lifetime Warranty
-
Applications:
- 2021+ BMW G80 M3 (incl. Competition) – 6MT & ZF8 Auto
- 2021+ BMW G82/G83 M4 (incl. Competition) – 6MT & ZF8 Auto
- 2020+ BMW F97 X3 M (incl. Competition)
- 2020+ BMW F98 X4 M (incl. Competition)
-
OEM Part Number:
- BMW: 17-51-8-092-584
- BMW: 17-51-8-053-321
