GSC B58 Beehive Valve Spring and Ti Retainer Kit
FEATURED IN OUR 1XXX WHP B58 ENGINE BUILD
GSC Power-Division Beehive Valve Spring Kit with Ti Retainer for the Toyota/BMW B58
- 100 lbs @ 1.417" install height
- 221lbs @ 0.984" (11mm Valve Lift)
Check your valve spring install heights here
| GSC5091 Beehive Valve Spring Kit with Ti Retainer for Toyota/BMW B58 |
|||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 11.0mm Lift | Maximum Valve Lift (in) |
| Beehive | 0.900 | 1.417 | 100 | 227lbs @ 0.984" | 0.472"/12mm |
- Max RPM: 9,300 RPM
- Max boost: 70 psi

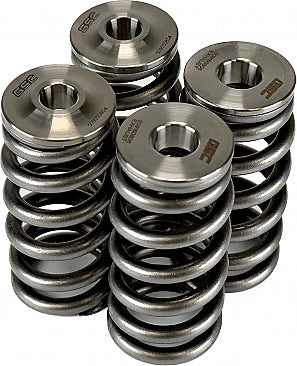

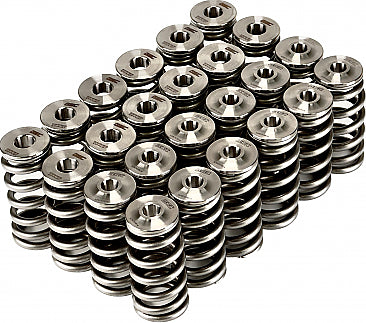

The GSC Power-Division Beehive Valve Spring Kit with Ti Retainer for the Toyota/BMW B58 includes 24 titanium retainers (12 Intake and 12 Exhaust) and 24 beehive valve springs. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
